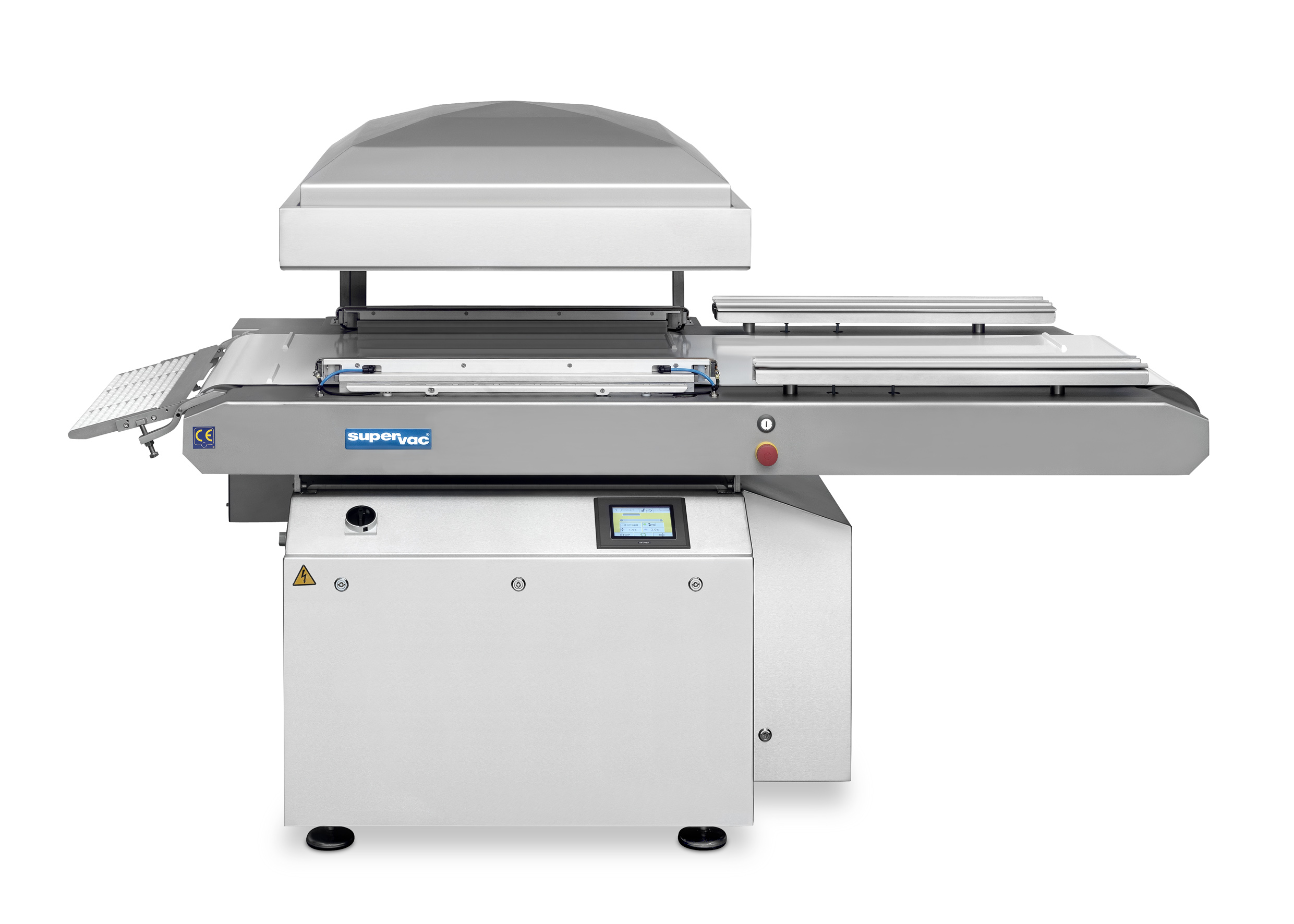

GK 402/ 403 B
Sealing bar length: 2 x 800 mm
Spacing between the bars: 650 mm
Lid height: 200/300 mm
Sealing bar height: 35 or 55 mm
Bag cut: Cut-off perforation
Output: Up to 3 cycles/min
Matching shrinking technology: AT 8, AS 660
Related products
Bag length: 250 – 1000 mm
Bag width: 200 – 600 mm
Type of bag: Taped bags
Number of bag pull-off units: Up to 6 different formats of vacuum bags for
parallel operation
Belt speed of the single-bag module: Variably adjustable, belt start and stop using
foot switch
Width of product conveyor belt of the single bag module: 100 mm
Energy: Electric
Thermal insulation: 80 mm
Immersion platform length: 1040 mm
Max. throughput width: 860 mm
Max. throughput height: 300 mm
Basin volume: approx. 460 l
Immersion cycles: Up to 7 cycles/minute
Operating temperature: 2°C and 5°C (35°F and 41°F)
Suitable packaging machine: Vacuum belt machines from GK 602 B
Energy: Electric
Thermal insulation: 80 mm
Spray units: 2 water curtains from above, 1 water jet from below, additional water nozzles on the sides
Max. throughput width: 860 mm
Max. throughput height: 300 mm
Basin volume: approx. 330 l
Belt speed: 0.1 – 0.4 m/sec.
Operating temperature: 2°C and 5°C (35°F and 41°F)
Suitable packaging machine: Vacuum belt machines from GK 602 B
Sealing bar length: 4 x 920 mm
Spacing between the bars: 870 mm
Max. product height: 270 mm
Lid: Stainless steel
Pump size: 160 / 300 m3/h
Matching shrinking technology: AT 6 / AT 7
Sealing bar length (soft vacuum): 1000 mm
Sealing bar length (hard vacuum): 1000 mm
Spacing between the bars: 550 mm
Lid height: 180 mm
Sealing bar height: 55 mm, other heights upon request
Bag cut: Cut-off perforation or cut-off device with rotation knife
Matching shrinking technology: AT 8, AS 660
Sealing bar length (soft vacuum): 1000 mm
Sealing bar length (hard vacuum): –
Spacing between the bars: 500 mm
Lid height: 230 mm
Sealing bar height: 45 or 65 mm
Bag cut: Cut-off perforation
Matching shrinking technology: AT 8, AS 660
Energy: Electric, steam, electric/steam combined
Thermal insulation: 80 mm
Spray units: 2 water curtains from above, 1 water jet from below, additional water nozzles on the sides
Max. throughput width: 860 mm
Max. throughput height: 300 mm
Basin volume: approx. 330 l
Belt speed: 0.1 – 0.4 m/sec.
Vapor exhaust system: integrated
Suitable packaging machine: Vacuum belt machines from GK 602 B
Energy: Electric, steam, electric/steam combined
Thermal insulation: 80 mm
Immersion platform length: 860 mm
Max. throughput width: 660 mm
Max. throughput height: 280 mm
Basin volume: approx. 240 l
Immersion cycles: up to 7 cycles/minute
Vapor exhaust system: integrated
Suitable packaging machine: Vacuum belt machines up to GK 501 B
