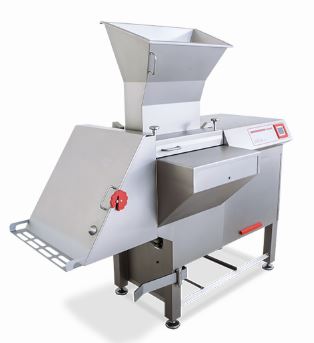

Technical specifications Cubixx 100
Output: Max. 1.300 kg/h (Depending on product)
Loading dimension W x H x L 100 x 100 x 290 mm
Feed motion 1-35 mm
Power supply 2,6 kW
Weight 220 kg
L x W x H 1.165 x 635 x 1.140 mm
Cutting grid sizes 4 x 4 mm – 50 x 50 mm
Output Max. 2.000 kg/h. (Depending on product)
Loading dimension W x H x L 100 x 100 x 500 mm
Feed motion 1-35 mm
Power supply 2,6 kW
Weight 310 kg
L x W x H 1.610 x 725 x 1.185 mm
Cutting grid sizes 4 x 4 mm – 50 x 50 mm
Output Max. 1.600 kg/h (Depending on product)
Loading dimension W x H x L 100 x 100 x 400 mm
Feed motion 1-35 mm
Power supply 2,6 kW
Weight 250 kg
L x W x H 1.365 x 635 x 1.140 mm
Cutting grid sizes 4 x 4 mm – 50 x 50 mm
Output Max. 2.000 kg/h (Depending on product)
Loading dimension W x H x L 100 x 100 x 500 mm
Feed motion 1-35 mm
Power supply 3,3 kW
Weight 500 kg
L x W x H 1.965 x 1.145 x 1.960 mm
Cutting grid sizes 5 x 5 mm – 50 x 50 mm
Output Max. 2.800 kg/h (Depending on product)
Loading dimension W x H x L 120 x 120 x 550 mm
Feed motion 1-40 mm
Power supply 8,0 kW
Weight 700 kg
L x W x H 1.885 x 1.655 x 1.230 mm
Cutting grid sizes 4 x 4 mm – 60 x 60 mm
Output (Depending on product) Max. 2.800 kg/h
Loading dimension W x H x L 120 x 120 x 550 mm
Feed motion 1-40 mm
Power supply 8,5 kW
Weight 850 kg
L x W x H 1.885 x 1.730 x 1.990 mm
Cutting grid sizes 4 x 4 mm – 60 x 60 mm
Output (Depending on product) Max. 2.800 kg/h
Loading dimension W x H x L 120 x 120 x 550 mm
Feed motion 1-40 mm
Power supply 8,5 kW
Weight 900 kg
L x W x H 1.885 x 1.730 x 1.990 mm
Cutting grid sizes 4 x 4 mm – 60 x 60 mm
Output: 4.800 kg/h (Depending on product)
Loading dimension W x H x L 150 x 150 x 610 mm
Cutting thickness with spiral blade 1-40 mm
Power supply 15,0 kW
Weight 1.100 kg
L x W x H 2.190 x 1.935 x 1.920 mm
Cutting grid sizes 5 x 5 mm – 75 x 75 mm
Output: Max. 2.300 kg/h (Depending on product)
Loading dimension W x H x L 116 x 116 x 520 mm
Feed motion 1-40 mm
Power supply 10,5 kW
Weight 1.050 kg
L x W x H 2.020 x 1.695 x 2.075 mm
Cutting grid sizes 4 x 4 mm – 58 x 58 mm
Output: Max. 2.800 kg/h (Depending on product)
Loading dimension W x H x L 116 x 116 x 535 mm
Feed motion 1-40 mm
Power supply 11 kW
Weight 1.150 kg
L x W x H 2.020 x 1.695 x 2.075 mm
Cutting grid sizes 4 x 4 mm – 58 x 58 mm
Output: Max. 3.200 kg/h (Depending on product)
Loading dimension W x H x L 150 x 150 x 610 mm
Feed motion 1-40 mm
Power supply 15,0 kW
Weight 1.650 kg
L x W x H 2.685 x 2.170 x 1.960 mm
Cutting grid sizes 6 x 6 mm – 75 x 75 mm
