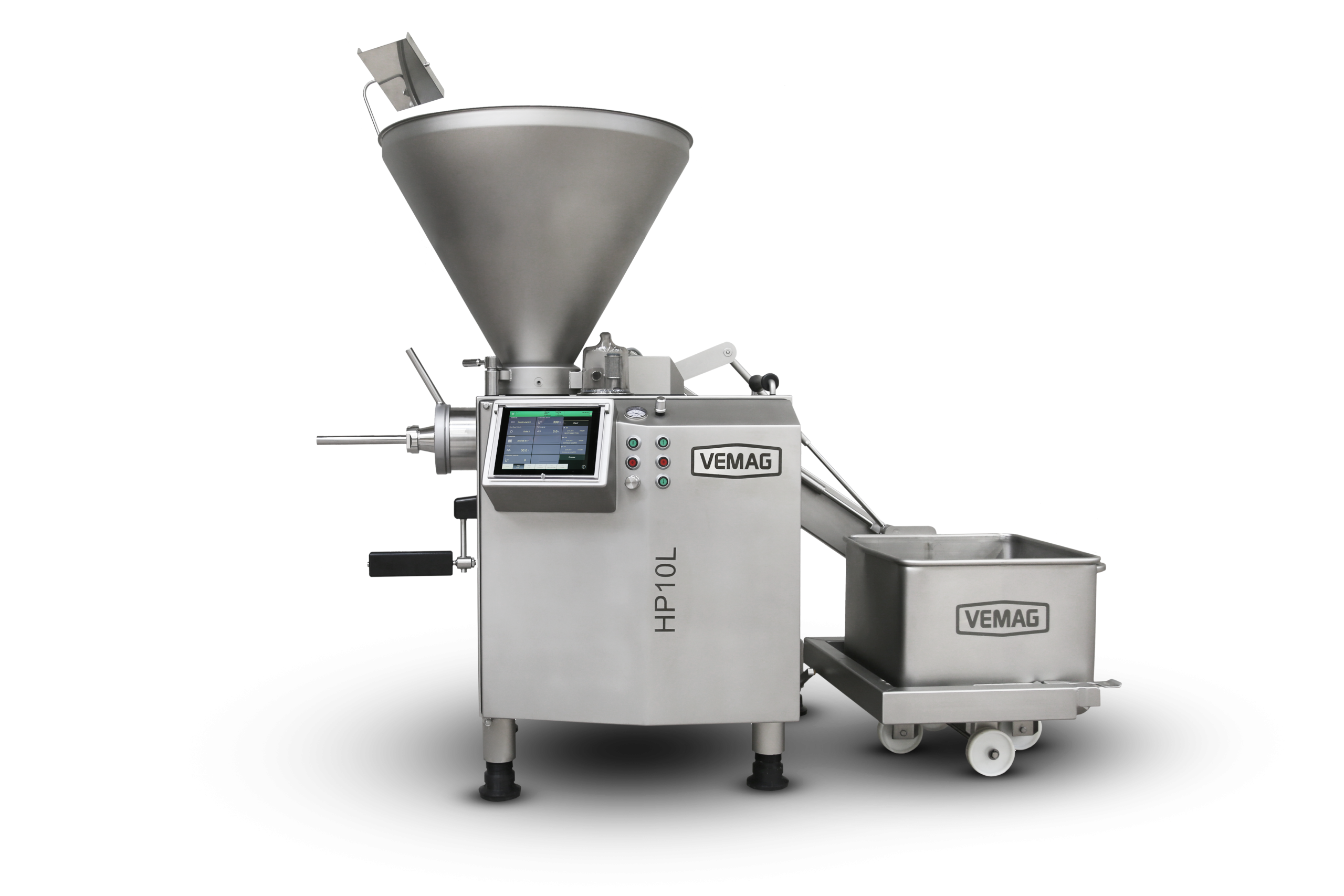

HP10L
Filling rate: up to 7000 kg/h, depending on feed element
Portioning speed: up to 820 portions/min. (depending on product, casing and portion size)
Hopper capacity: 250 l (two parts optional)

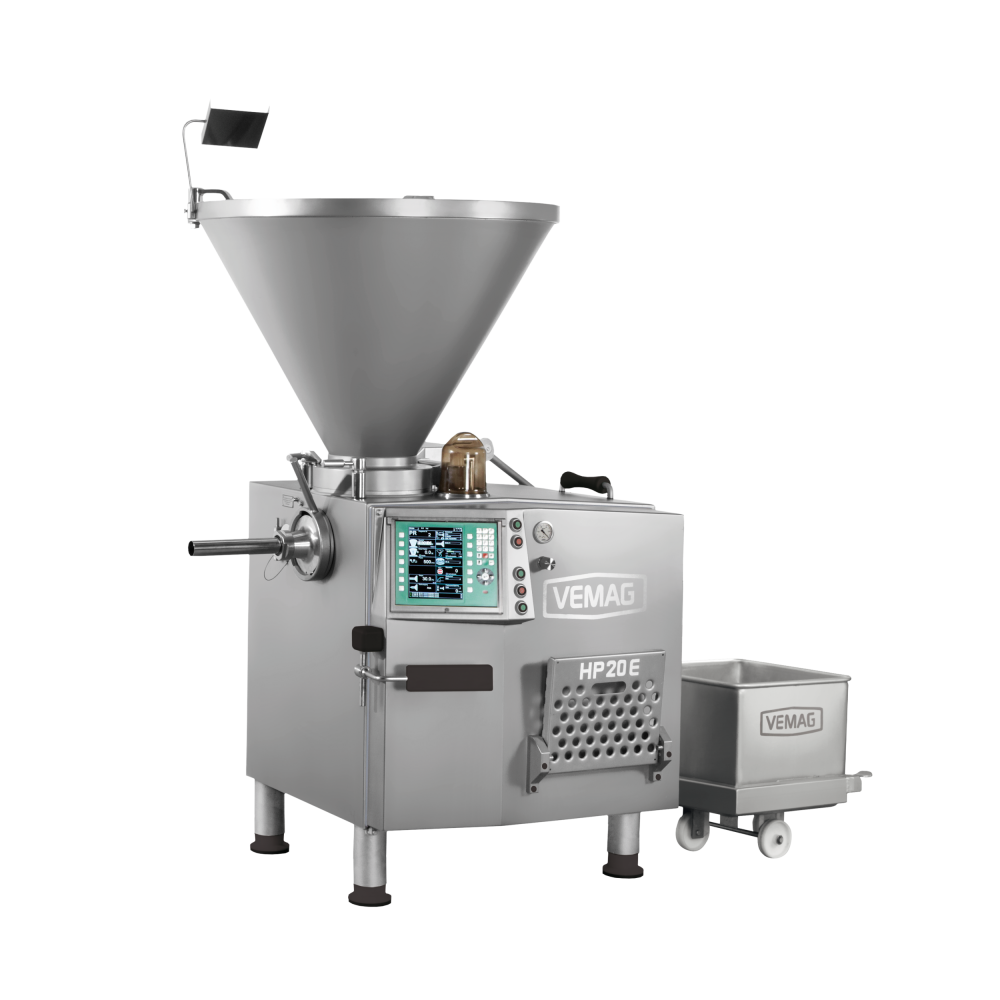

Related products
Basic data non filled products
–Single outlet : Up to 250 ppm at 20 g = 300 kg / h
–Double outlet : Up to 500 ppm at 20 g = 600 kg / h
–1 g – 120 g or ø 10 – 60 mm
- Round, Oval, Cylinder, Flattened products
- Automating your production processes using machines that are reliable, safe and flexible can help you to meet these growing demands. But the challenges are considerable, and it helps to have a reliable partner by your side.
- Working in a continuous and close dialogue with our customers, we develop machines and attachments that meet your needs and offer high performance, versatility and precision.
Filling capacity :
80 OMR hydraulic motor rpm 300; Output 2,8 t/h
125 OMR hydraulic motor rpm 190; Output 1,8 t/h > DS 48
160 OMR hydraulic motor rpm 150; Output 1,4 t/h > DS 48
Filling hopper : 110l/230l (Option)
Casing types: artificial and collagen casings
Portioning speed : up to 2.200 portions/minute
Calibre: 13 – 36 mm
Casing lengths : 580 mm
