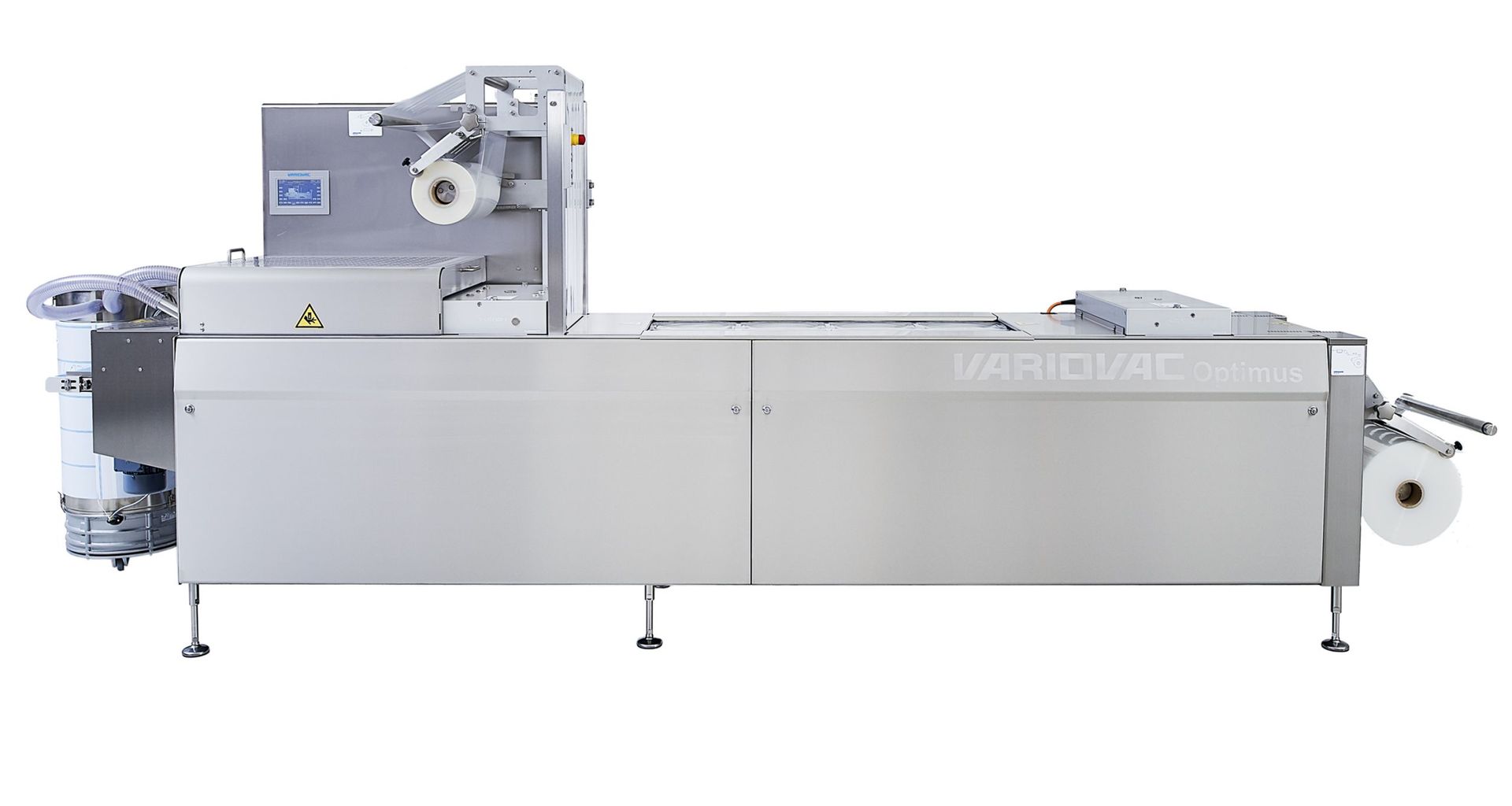

OPTIMUS
Frame length: from 2,5m to 4,5 m (extendable on request up to 5m and 5,5m)
Film width: 320 mm / 355 mm / 360 mm / 420 mm / 460 mm
Draw-off length: 150 – 460 mm*
Packaging depth: up to 110 mm*
High-performance control: IPC 10″ touchscreen with error diagnosis and data back-up via USB port or Ethernet
Packaging output: up to 13 cycles / min
Packaging types: Sealing, Vacuum, MAP, Skin, Steam, Shrink
Cooling: Integrated circulatory cooling unit without consumption of water
Compressed air: min. 6 bar (varies according to equipment)
Electrical voltage: 3 x 230 V N/PE 3 x 400 V N/PE 50/60 Hz
