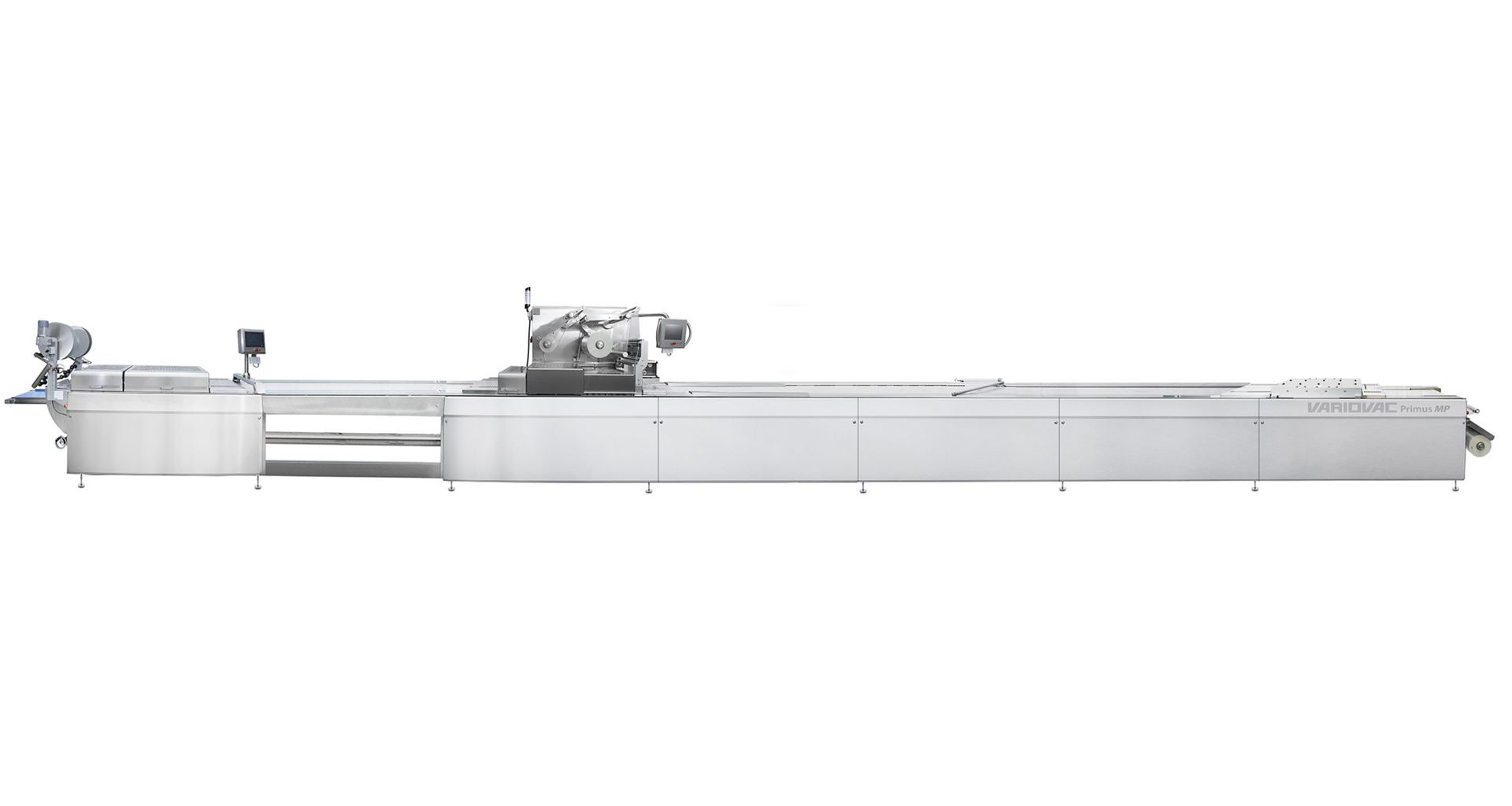

Primus MP
Film widths: 320 – 660 mm
Draw-off lengths: 200-1200mm
Packaging depth: 195mm
Film strength: Bottom film up to 1000 u
Frame length: from 5 m to 30 m
High-performance control: IPC, swivel-mounted 12.1″ touchscreen
Packaging types: Sealing / Vacuum / MAP / Skin / Steam / Shrink
Cooling system: Integrated heat exchanger without consumption of water
Compressed air: min. 6 bar (varied according to equipment)
Electrical voltage: 3 x 230 V N/PE
3 x 400 V N/PE
50/60 Hz
Related products
Roll diameter of the film: up to 300 mm in diameter
Tray depth: up to 100 mm
Product overhang: up to 25 mm
Tray depth for skin: up to 40 mm
High-performance control: IPC 7″ Touchscreen
Cycle rate: 4 – 8 cycles / min
Application: MAP, Skin seal
Compressed air: min. 6 bar
Electrical voltage: 3x 400V N/PE, 50/60 HZ
Weight: 450 kg
Space required: 1.6 qm
Frame length: from 2,5m to 4,5 m (extendable on request up to 5m and 5,5m)
Film width: 320 mm / 355 mm / 360 mm / 420 mm / 460 mm
Draw-off length: 150 – 460 mm*
Packaging depth: up to 110 mm*
High-performance control: IPC 10″ touchscreen with error diagnosis and data back-up via USB port or Ethernet
Packaging output: up to 13 cycles / min
Packaging types: Sealing, Vacuum, MAP, Skin, Steam, Shrink
Cooling: Integrated circulatory cooling unit without consumption of water
Compressed air: min. 6 bar (varies according to equipment)
Electrical voltage: 3 x 230 V N/PE 3 x 400 V N/PE 50/60 Hz
Film widths: 230 – 560 mm
Draw-off lengths: 100 – 700 mm
Packaging depth: up to 135 mm
Film strength: Bottom film up to 550 µ
Frame length: Different module lengths of 5.0 to 12 m
High-performance control: IPC, swivel-mounted 12.1″ touchscreen
Packaging output: up to 20 cycles / min
Packaging types: Sealing, Vacuum, MAP, Skin, Steam, Shrink
Cooling: integrated heat exchanger without consumption of water
Compressed air: min. 6 bar; the consumption is
dependent on the machine configuration
and equipment
Electrical voltage: 3 x 230 V N/PE
3 x 400 V N/PE
50/60 HZ
Basic machine OL 30 or 35 with 420mm film width
Basic die 240, 260, 280, 300 or 320mm with side pins
Pack size 2.1
Flat sealing plate
Unwinding system with storage roll
Vacuuming system
Trim removal system
Max. package depth 60 or 110mm
Safety cover VA (hinged) in the cutting area
Vacuum pump 100 cbm/h
Automatic chain greasing
Activated carbon filter
One guillotine
Long cut with rotating blades
Discharge conveyor
Film width: 320mm / 355mm / 360mm / 420mm / 460mm
Film advance: 150 – 520mm
Product protrusion Skin: up to 55mm
Package depth MAP: up to 110mm
Package output: up to 6 cycles/min
Packaging types: Sealing, vacuum, MAP, Skin
Cooling: Integrated circulation cooling system without water consumption
Compressed Air: min. 6 bar (without addition)
Film roll diameter: up to 300 mm in diameter
Max. film width: Outside cut = 410 mm, Inside cut =350 mm
Film transport: Electromotive, unwinding and rewinding of film by pneumatic mandrel
High-performance control: IPC10″ swivel-mounted touchscreen, different languages, 80 distinct recipes, USB port allows for easy data backup, Remote diagnostic capability
(optional)
Compressed air: min. 6 bar
