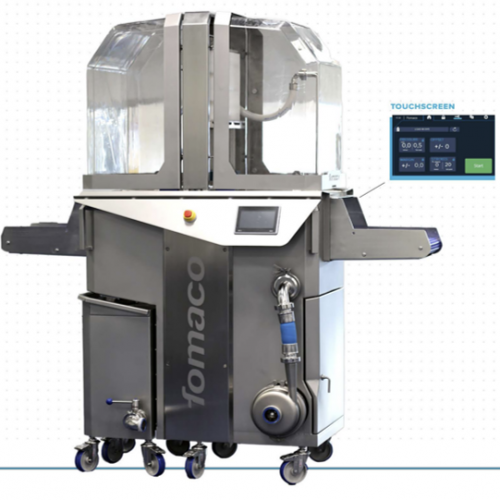

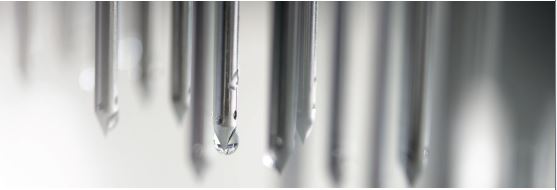

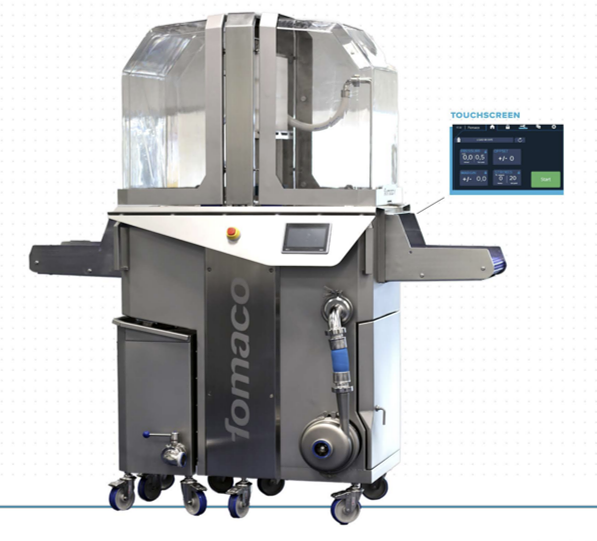

Number of needles: 32 triple needles with 96 injection points or 32 single needles
Needle head: 20-70 strokes per min.
Transport system: Blue plastic (ScanBelt)
Transport system (width): 300 mm
Conveyor advancement: 33 mm/stroke
Stroke height: 140/280mm (semi variable stroke height)
Product height: 230mm
Motor: 1.1kW/2.8A
Pump pressure: 0.5 -5.5 bar
Pump capacity : 55 l/min. at 3 bar
Width of belt: 280 mm
Product movement: 30 mm per stroke
Speed of needle head: 20-65 stroke per min
